Bus Cables

So-J-(2Y+H)H PiMF

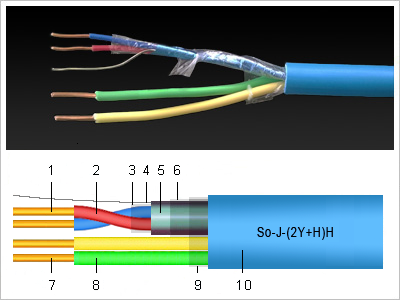

So-J-(2Y+H)H PiMF cable and structural drawing

Structure

  •   1 Solid copper conductor
  •   2 Halogen-free polyolefin (PE) insulation
  •   3 PET foil
  •   4 Drain wire
  •   5 AL/PET foil
  •   6 PET foil
  •   7 Solid Cu conductor
  •   8 Halogen-free polyolefin (FRNC) insulation
  •   9 PET foil
  • 10 Halogen-free polyolefin (FRNC) sheath
