Fire proof cables

S.Fire Proof
JB-H(St)H, JE-H(St)H

(P120) (PH120) 180'

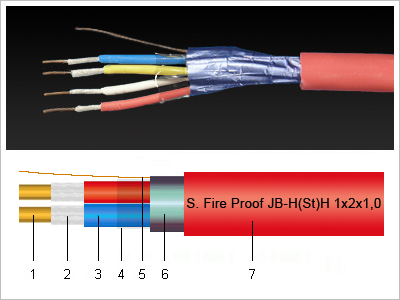

S.Fire Proof JB-H(St)H 180' cable and structural drawing

Structure

  • 1 Solid Cu conductor
  • 2 MICA TAPE
  • 3 Halogen-free polyolefin (FRNC) insulation
  • 4 PET foil
  • 5 Drain wire
  • 6 AL/PET foil
  • 7 Halogen-free polyolefin (FRNC) sheath (red)



S.Fire Proof JB-H(St)H 180' cable and structural drawing

Structure

  • 1 Solid Cu conductor
  • 2 MICA TAPE
  • 3 Halogen-free polyolefin (FRNC) insulation
  • 4 PET foil
  • 5 Drain wire
  • 6 AL/PET foil
  • 7 Halogen-free polyolefin (FRNC) sheath (orange)
